The Leading Manufacturer of
ESD Vinyl Flooring Sheets in China
2000 Series
Carbon Fibres Loaded
ESD Vinyl Flooring Sheets
Electrical Resistance
Dimension & Thickness
1.0x10E04-1.0x10E06 ohm
1.0x10E06-1.0x10E09 ohm
2mx15m, 2mx20m
2.0mm, 3.0mm
Homogeneous structure with UV coating.
T class or P class wear resistance.
Outstanding stain, chemical, corrosion, penetration, heat/fire, slip resistance.
What is Carbon Fibres Loaded ESD Sheet ?
ESD Vinyl Sheet (also known as ESD Roll Flooring) is flexible homogeneous vinyl flooring supplied in roll sizes of 2 m × 20 m and 2 m × 15 m. It is compounded from premium PVC resin, conductive carbon fibres, stabilizers, plasticizers, pigments and other high-performance additives.

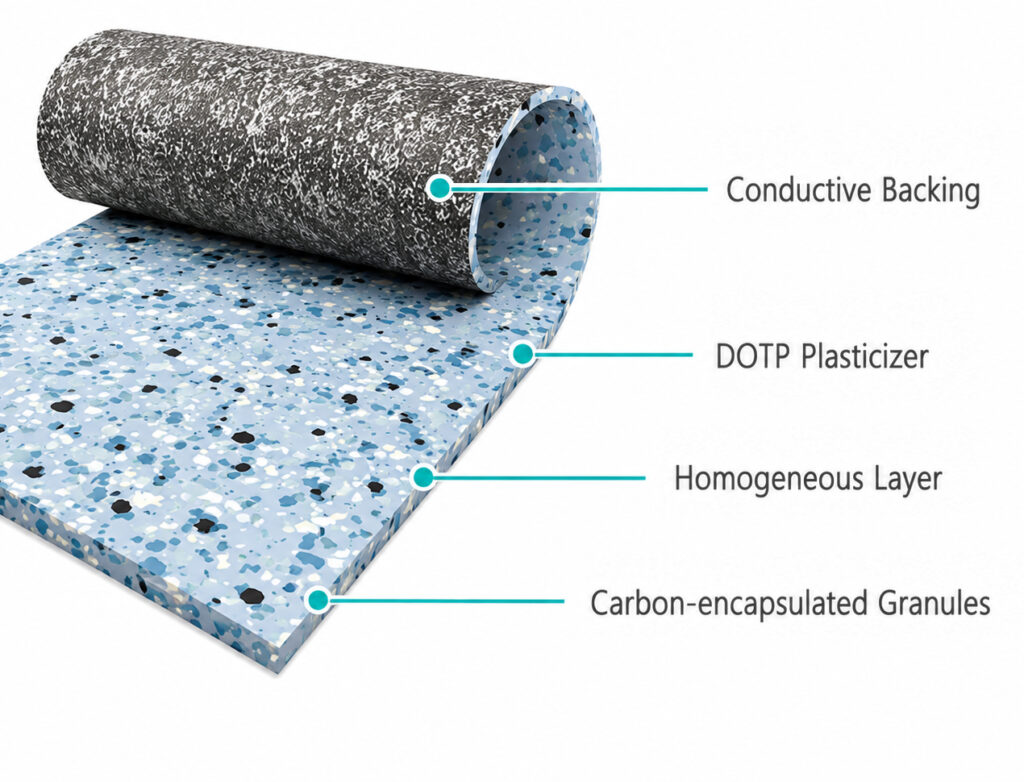

Conductive carbon fibres are evenly dispersed through the full thickness of the flooring, paired with a conductive backing layer to deliver steady, uniform electrical resistance. This integrated construction delivers reliable static control and consistent long-term conductivity over the entire service life of the floor. It is therefore the ideal flooring solution for electronics manufacturing workshops, data centers, cleanrooms, laboratories and all other static-sensitive working environments.
2000 Series Color Collection

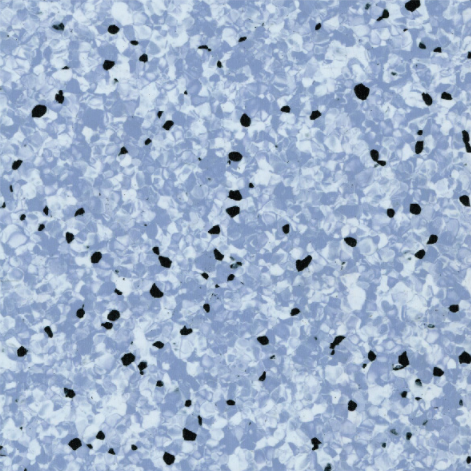

YHE-2000

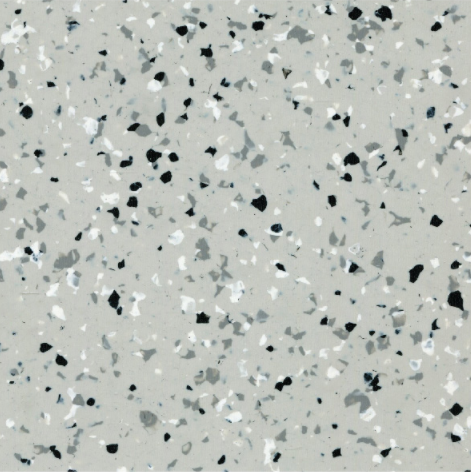

YHE-2001

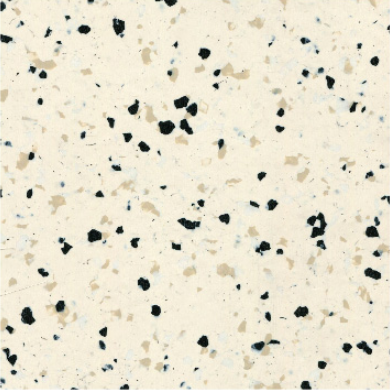

YHE-2002

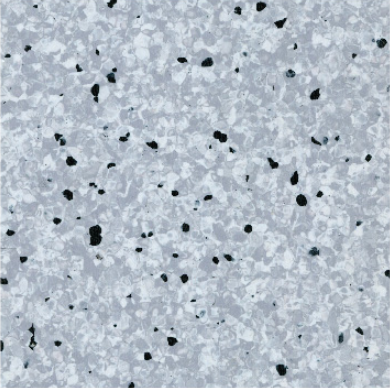

YHE-2003

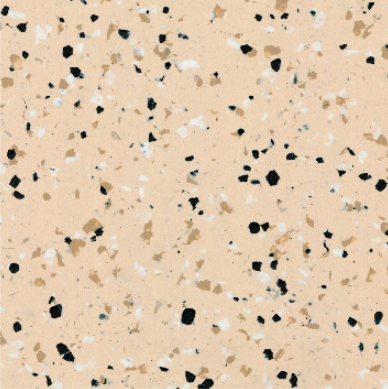

YHE-2005

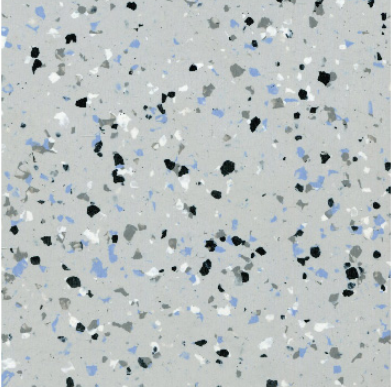

YHE-2010

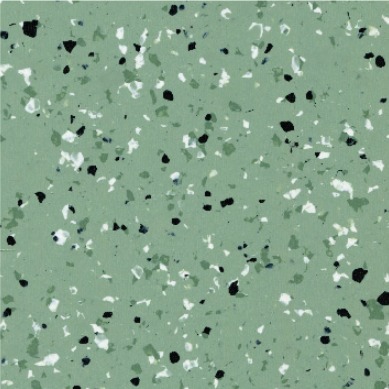

YHE-2011

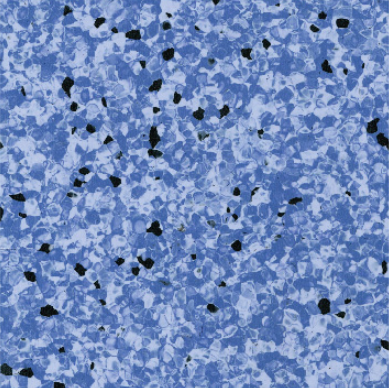

YHE-2015

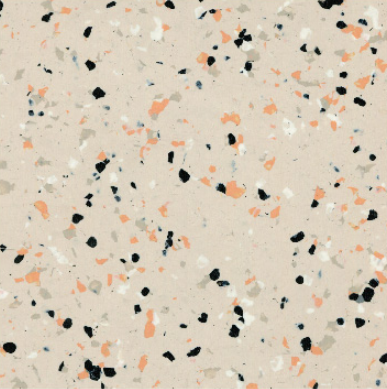

YHE-2016

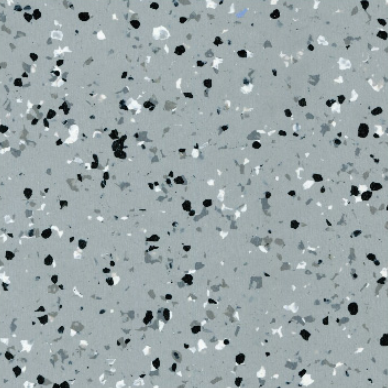

YHE-2017

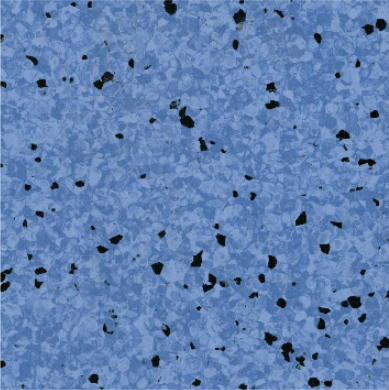

YHE-2018

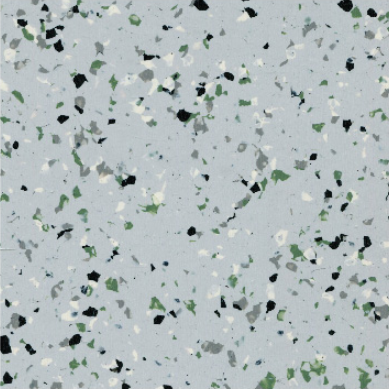

YHE-2019
Easy cutting & install
Flexible material allows free trimming to match irregular countertops, quick DIY installation without complex tools.
Low cost
Economical price, perfect choice for temporary work zones and small-scale ESD testing projects.
Seamless laying
Integral paving leaves no tiny gaps, effectively blocking dust accumulation and simplifying daily cleaning.
Soft shock-absorbent
Soft texture cushions falling electronic parts to avoid scratches and product damage during operation.
Specifications
| ITEM | DETAILS |
| Product | Carbon Fibres Loaded ESD Vinyl Sheet |
| Dimension | 2mx20m/15m |
| Thickness | 2.0mm, 3.0mm |
| Composition of Material | Homogeneous, chip through |
| Weight | 2900g/sqm(2mm), 4350g/sqm(3mm) |
| Warranty | 10 Years |
Technical Data Sheet
| TEST ITEM | TEST STANDARD | TEST RESULTS | |
| Electrical Resistance(Ω) | SJ/T11236-2001 | Conductive EC 1.0×10⁴ – 1.0×10⁶ |
Dispassive SD 1.0×10⁶ -1.0×10⁹ |
| Dimensional Stability(%) | ISO 23999:2018 | ≤0.35 | |
| Static Decaying Voltage | SJ/T11236-2001 | 50V | 100V |
| Static Decay(s) | GJB2605-1996 | ≤0.3 | |
| Wear Resistance | EN 660-2:1999 | Class P | |
| Fire Resistance | EN13501-1:2007 | Bfl-s1 | |
| Radiant Flux(W/cm²) | ASTM E648-2017 | ≥1.1 | |
| Slip Resistance Wet | EN13893 | ≥0.3 | |
| Residual Indentation(mm) | ISO 24343-1:2002 | 0.01 | |
| Color Fastness | ISO 105 B02 | ≥6 | |
| Chemical Products Resistance | EN ISO 26987:2012 | OK | |
| Migration of Certain Elements | EN 71-3:2013 | OK | |
| RoHS Directive(%) | EN 62321 | 0.003 | |
| TVOC After 28 Days(μg/m³) | ISO 16000-3 | <10 | |
Certificates
FAQ
How does Carbon Fibres Loaded ESD Sheet work?
The embedded carbon fibres create a continuous conductive network that safely dissipates static electricity to the ground, protecting sensitive electronic equipment and components.
Does the conductivity wear off over time?
No. Since the conductive carbon fibres run through the entire thickness of the flooring, the electrical performance remains stable throughout its service life.
How is Carbon Fibres Loaded ESD Sheet installed?

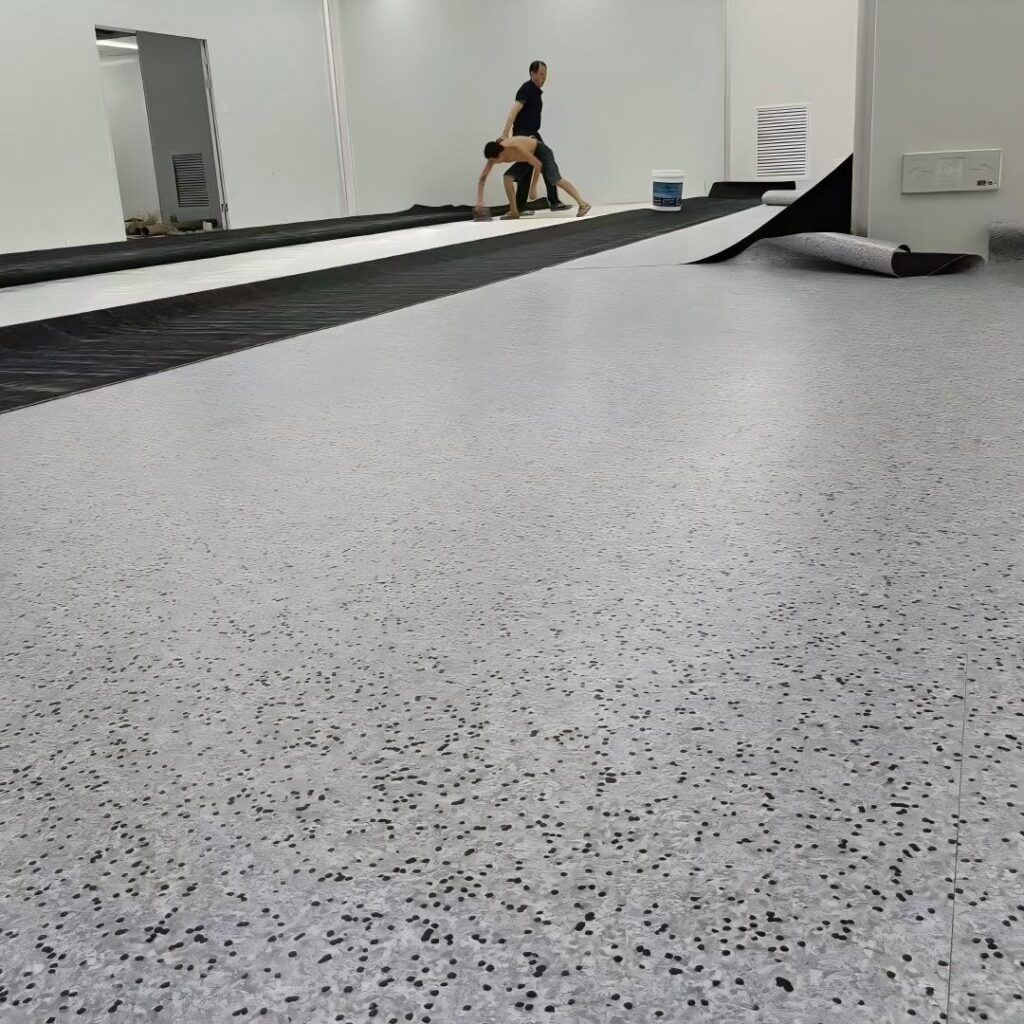

It should be installed using conductive adhesive, copper foil grounding strips, and matching welding rods to create a complete conductive flooring system.
Is it easy to maintain?
Yes. The seamless welded surface is easy to clean and resistant to wear, making it ideal for high-traffic industrial environments.
Can you provide OEM or customized solutions?
Yes. We offer OEM services, customized colors, electrical resistance options, roll sizes, packaging, and complete ESD flooring accessories.
