The Leading Manufacturer of Carbon-Free
ESD Vinyl Flooring Sheets in China
2100 Series
Free of Carbon Fibres
ESD Vinyl Flooring Sheets
Electrical Resistance
1.0x10E05-1.0x10E08 ohm
1.0x10E06-1.0x10E09 ohm
Dimension & Thickness
1.56mx15m, 2mx20m
2.0mm, 2.5mm, 3.0mm
Clean and good visuals, Absence of carbon sloughing.
Low risk of carbon dust and fine particulate contamination.
No hot or dead spots, T class wear resistance.Extremely durable.
Outstanding stain, chemical, penetration, heat/fire, moisture and slip resistance.
Antibacterial, antiviral and antifungal., no wax is needed for at least 5 years.
What is Free of Carbon
Fibres ESD Sheet?

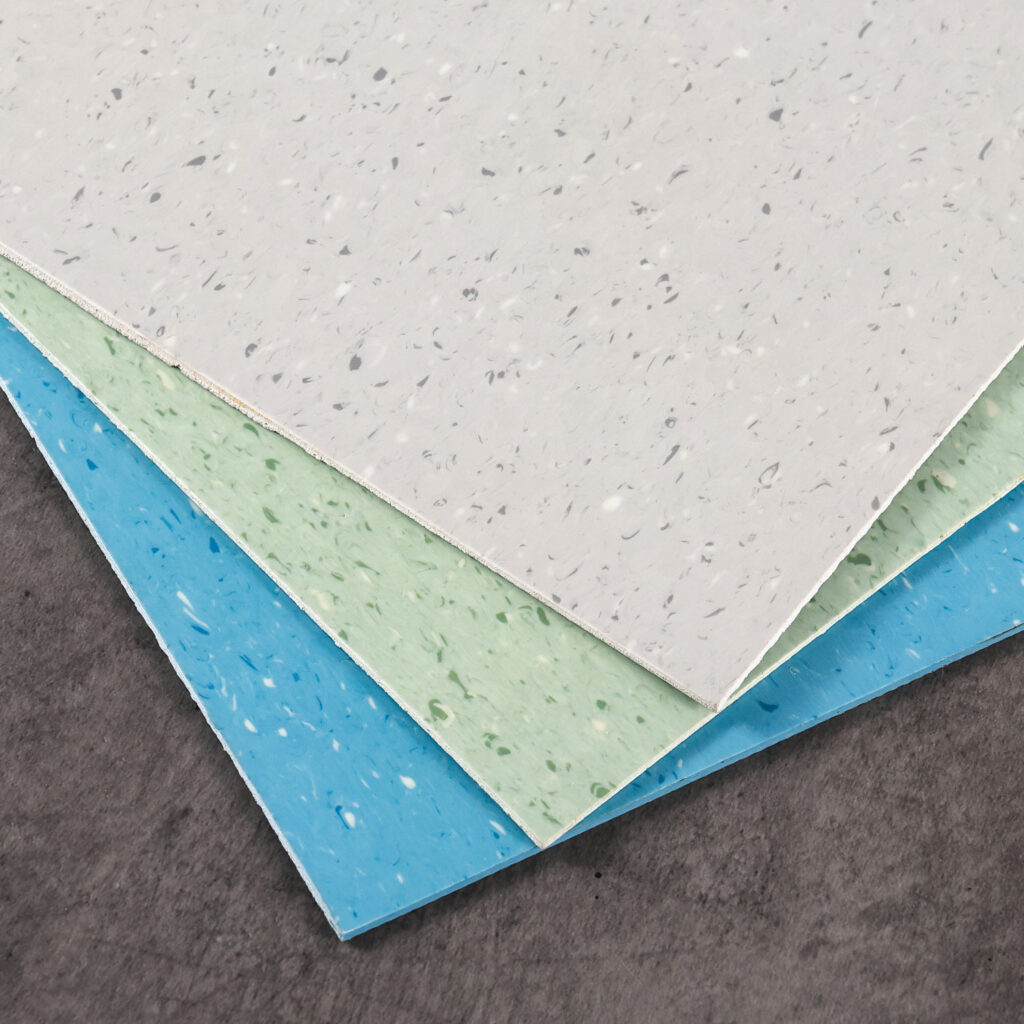

Free of Carbon Fibres ESD Sheet is a homogeneous anti-static vinyl flooring developed with advanced carbon-free conductive technology. Unlike traditional ESD flooring that relies on carbon black or carbon fibres, it delivers permanent and stable electrostatic protection without visible carbon particles, creating a cleaner and more uniform floor appearance.
Manufactured from high-purity virgin PVC with a homogeneous construction, it offers excellent wear resistance, strong welding performance, and a long service life. The conductive antibacterial UV coating improves scratch resistance, simplifies cleaning, and eliminates the need for conductive wax maintenance, helping reduce maintenance costs. It is an ideal solution for cleanrooms, electronics manufacturing, semiconductor plants, pharmaceutical facilities, laboratories, and other static-sensitive environments.

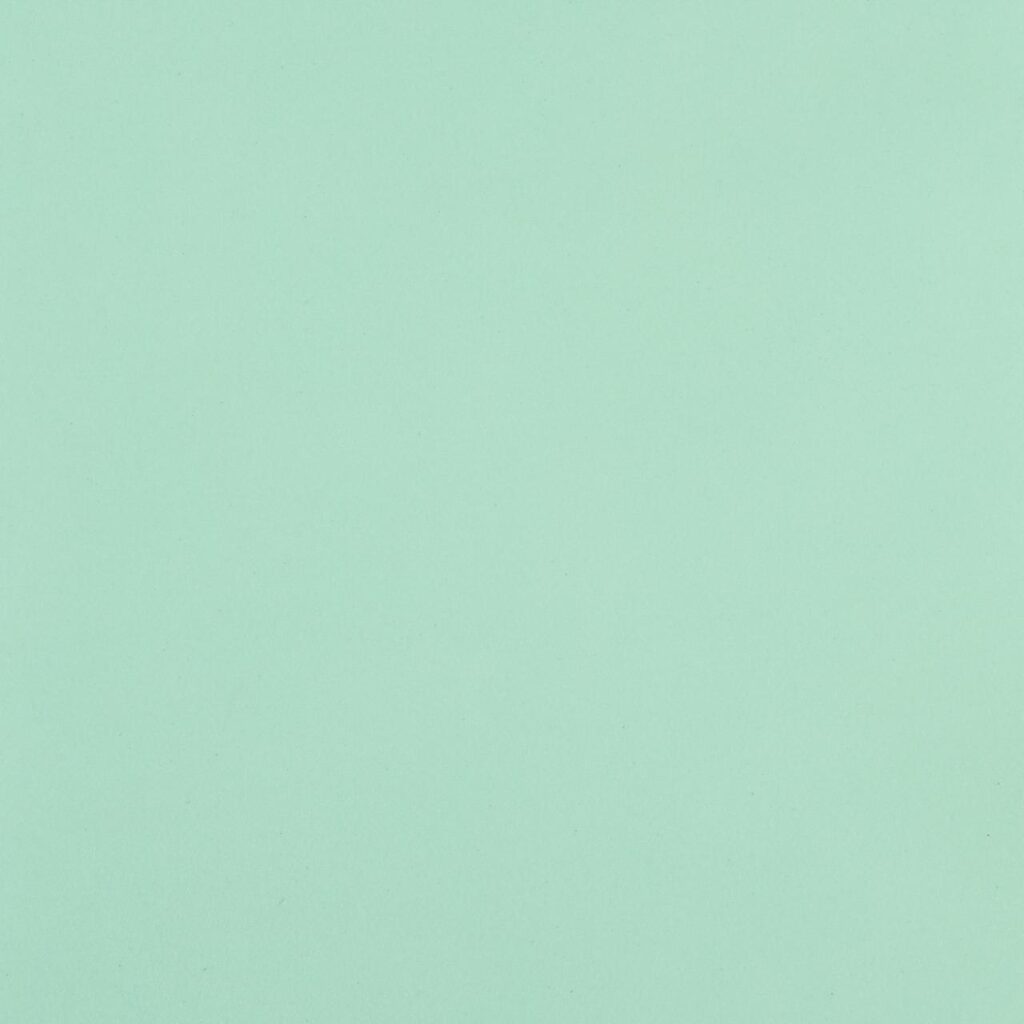

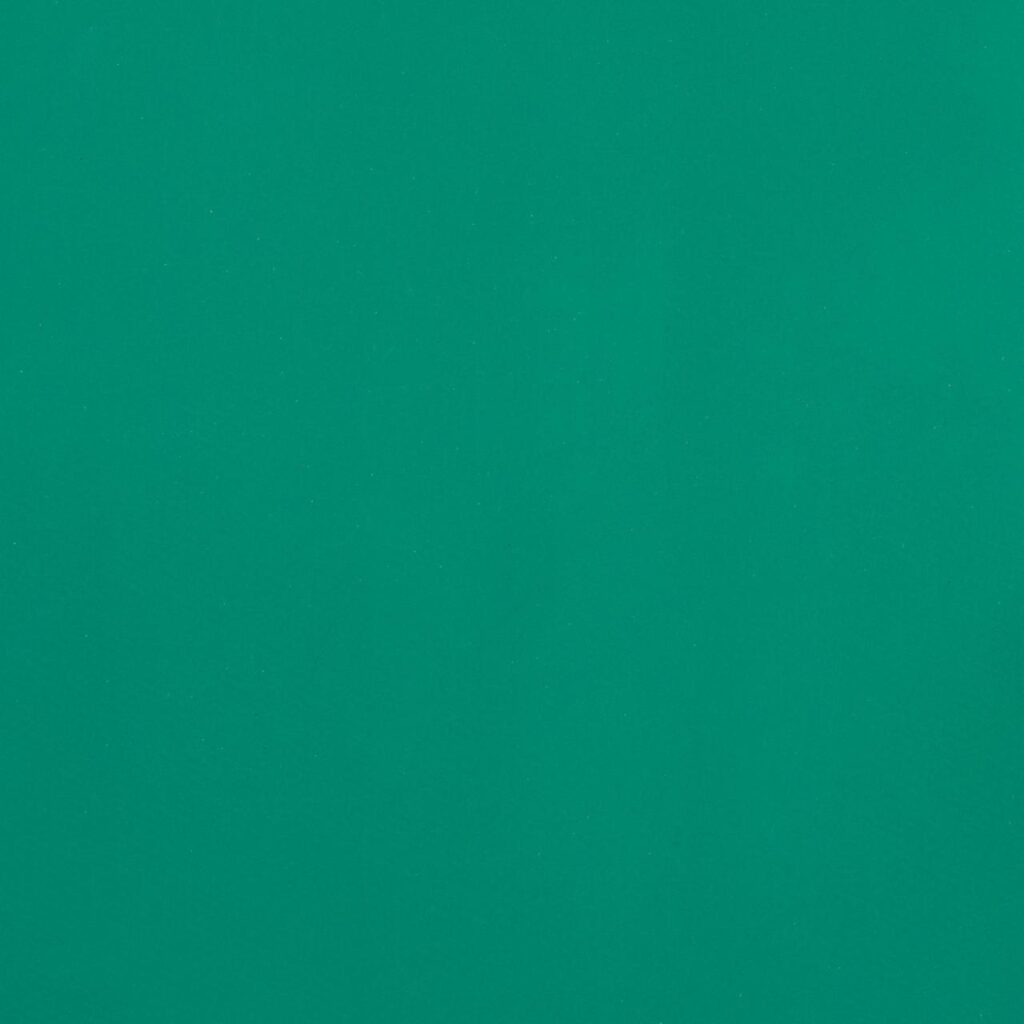

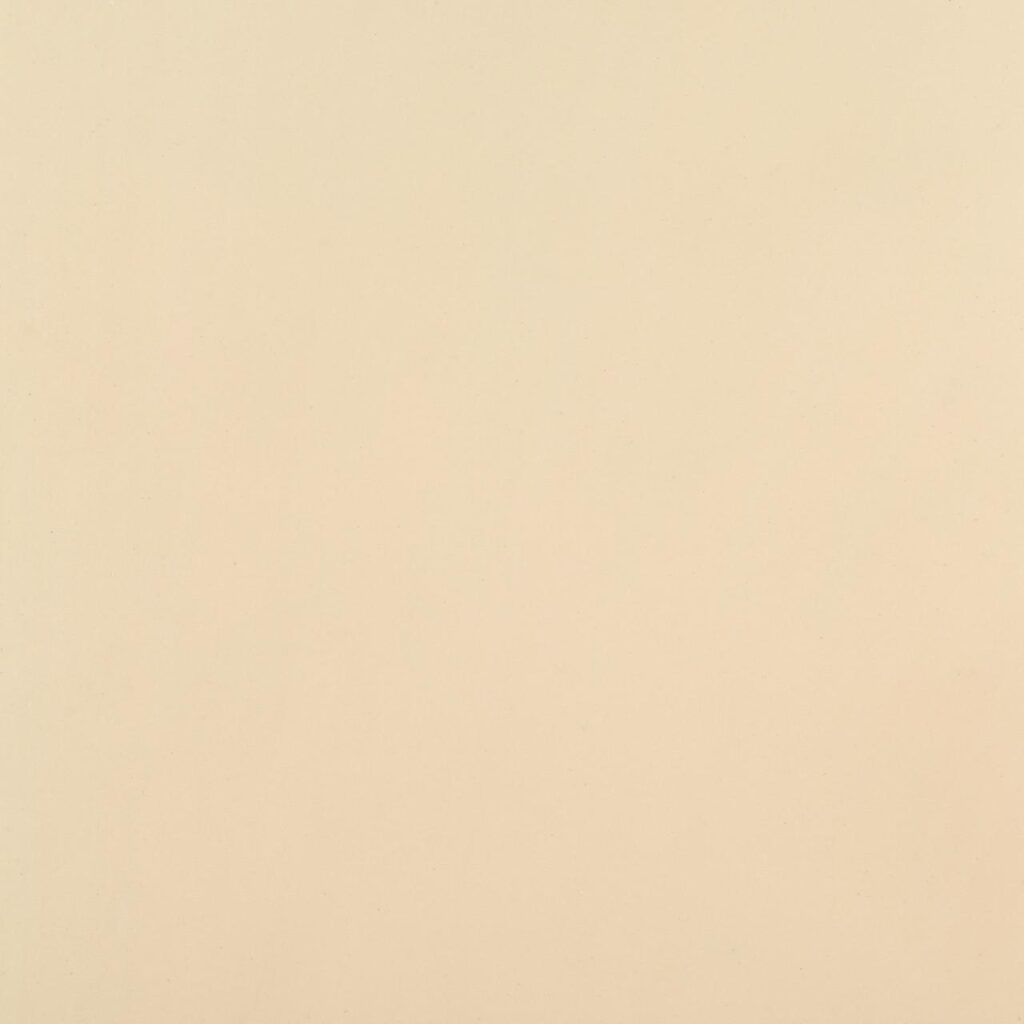

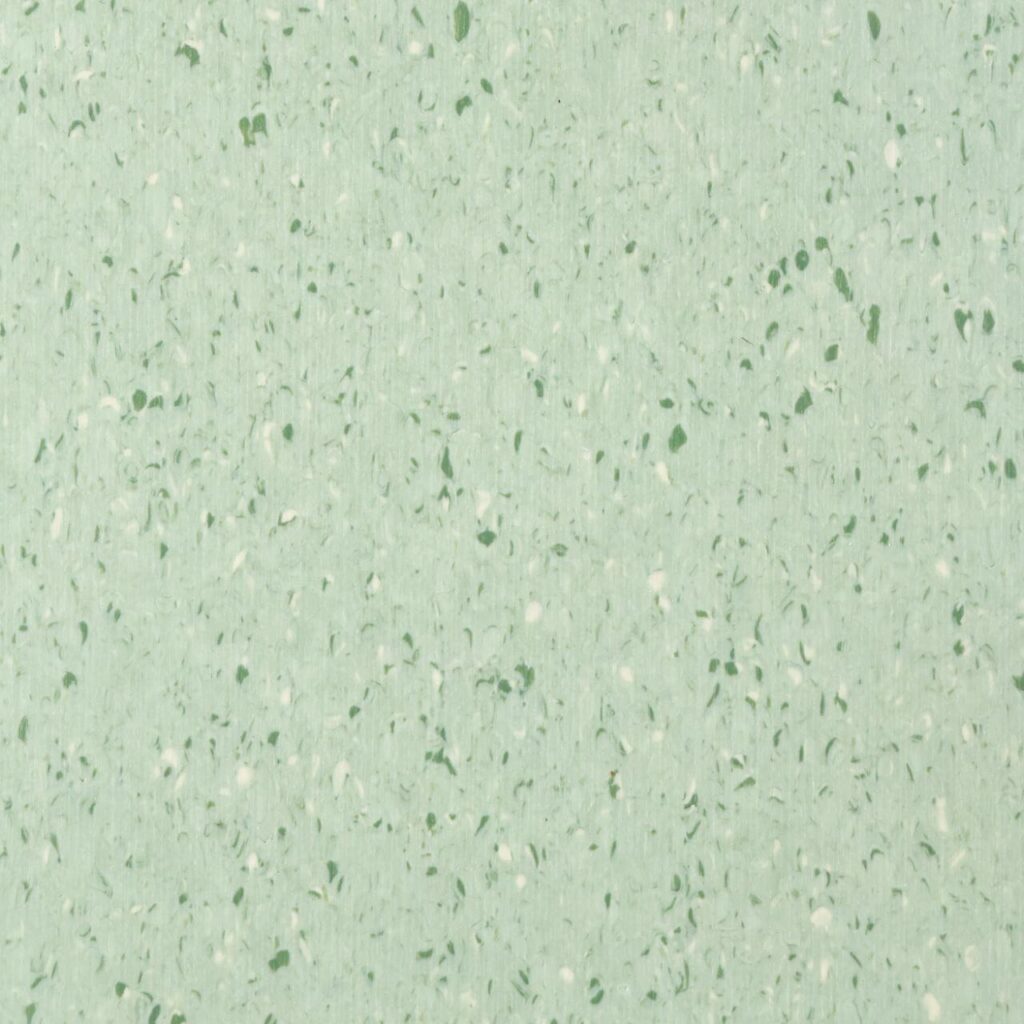

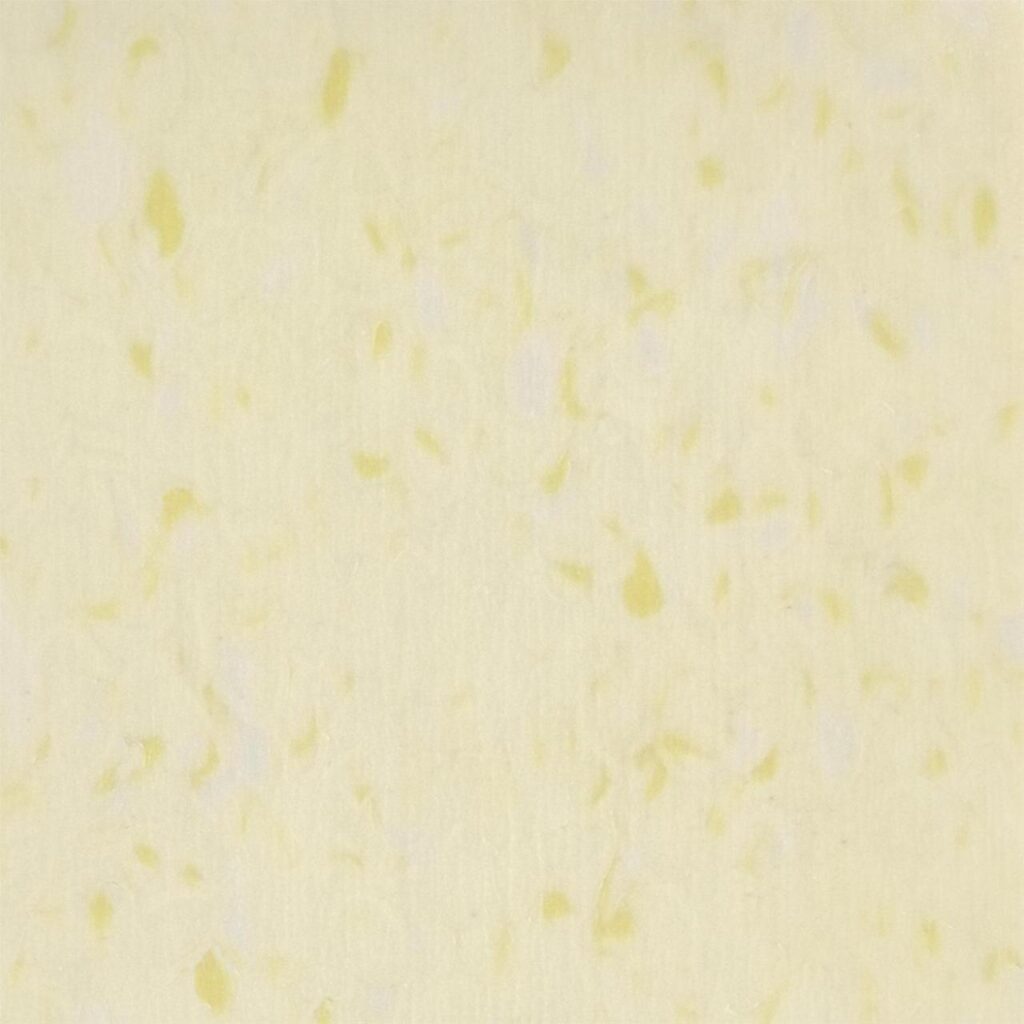

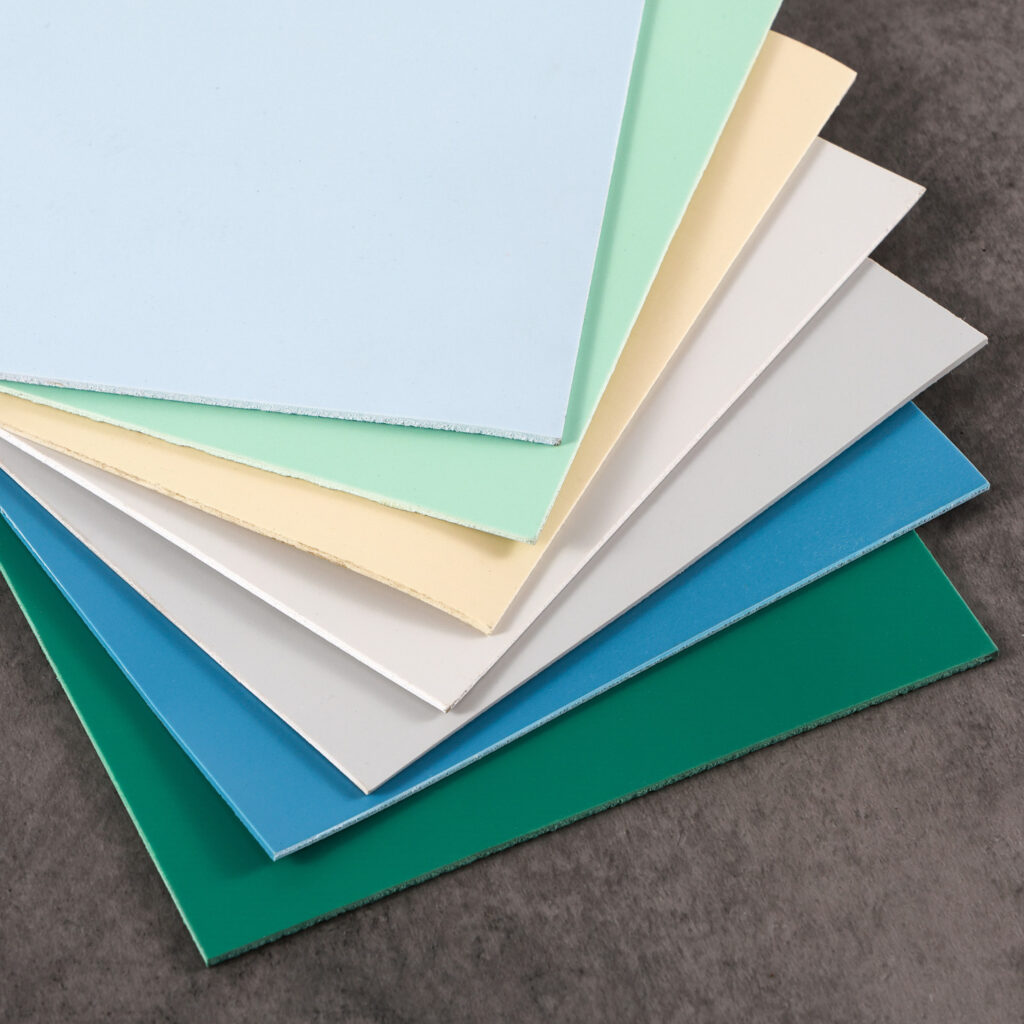

2100 Series Color Collection

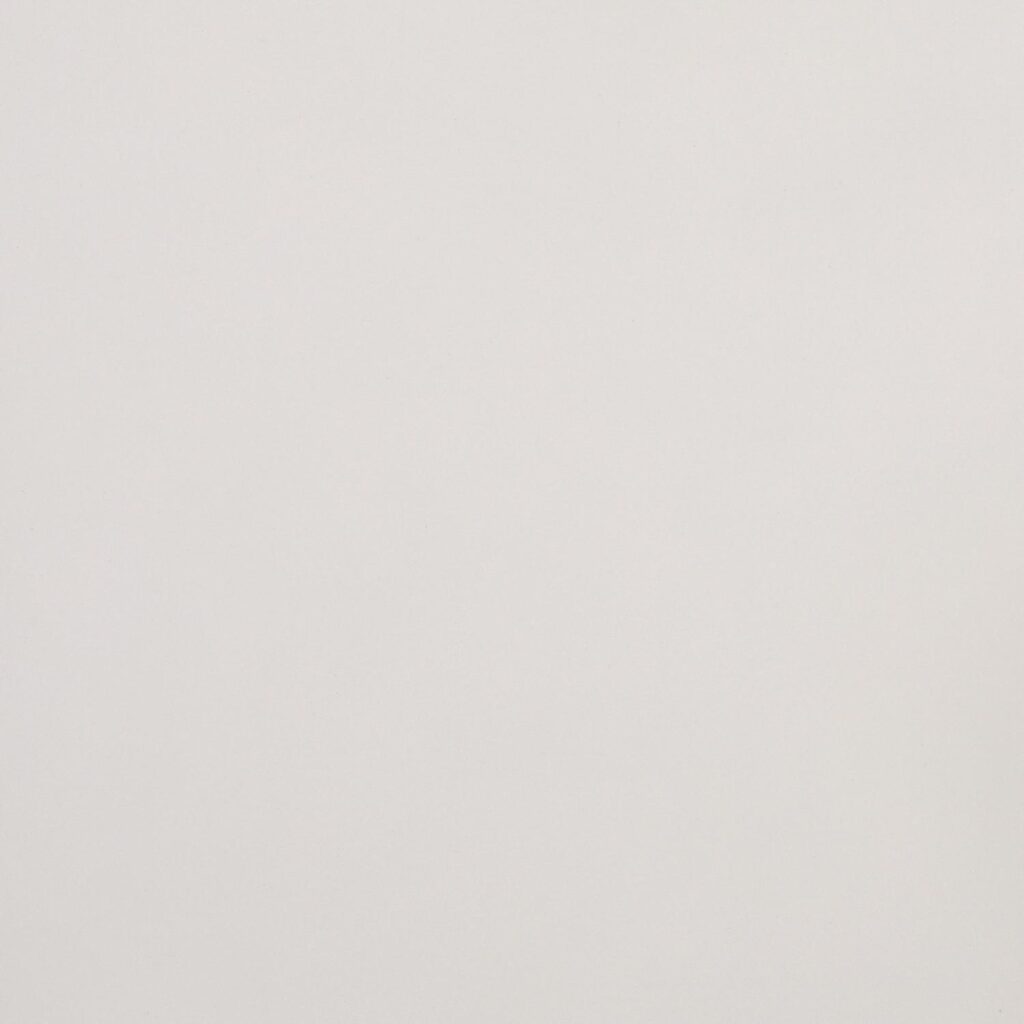

YHE-2101A

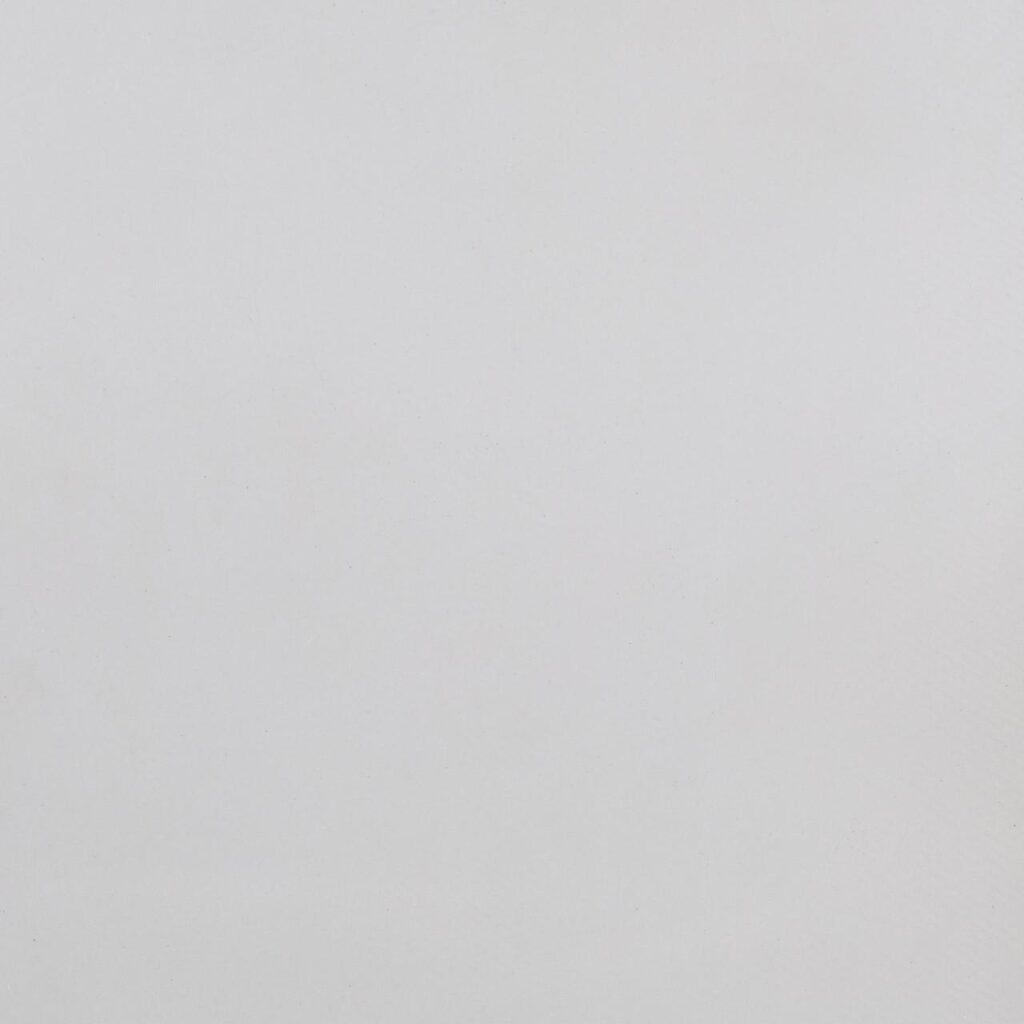

YHE-2101B
YHE-2102
YHE-2103

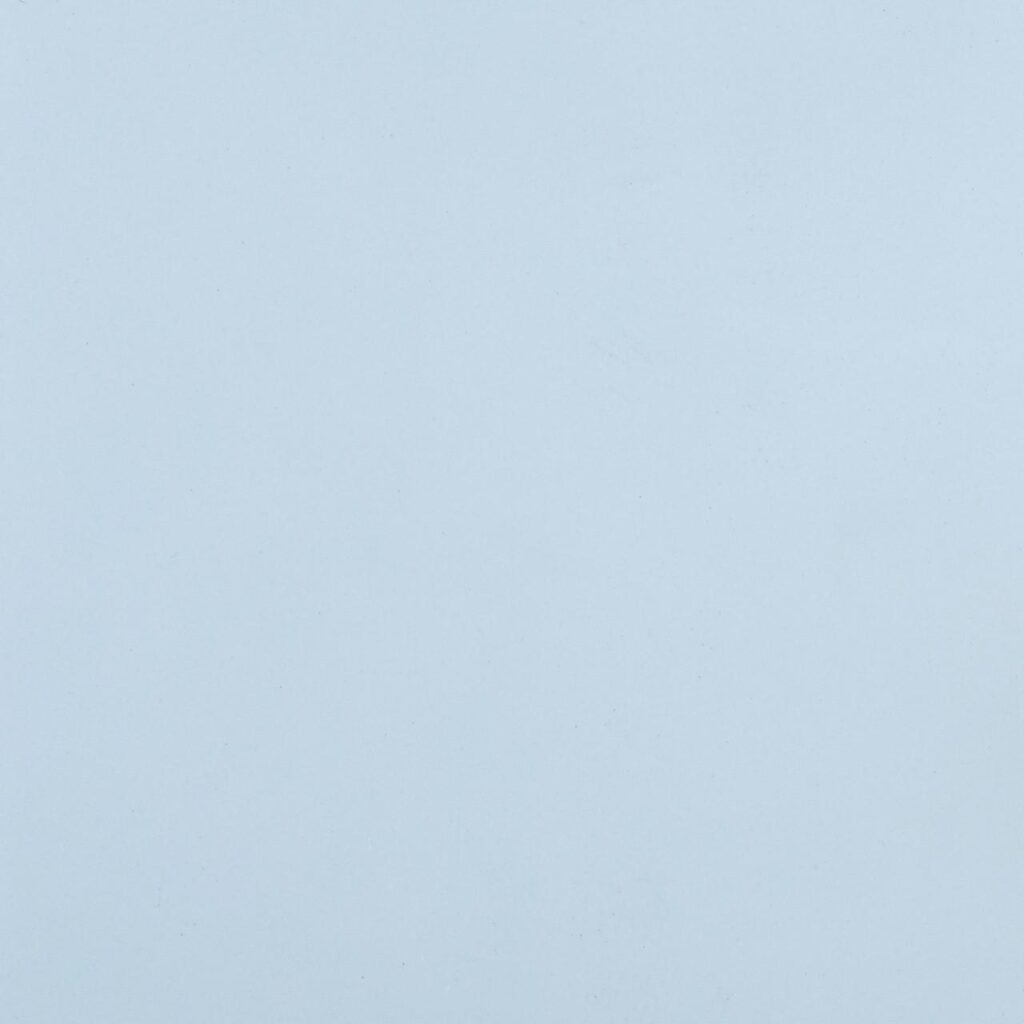

YHE-2104

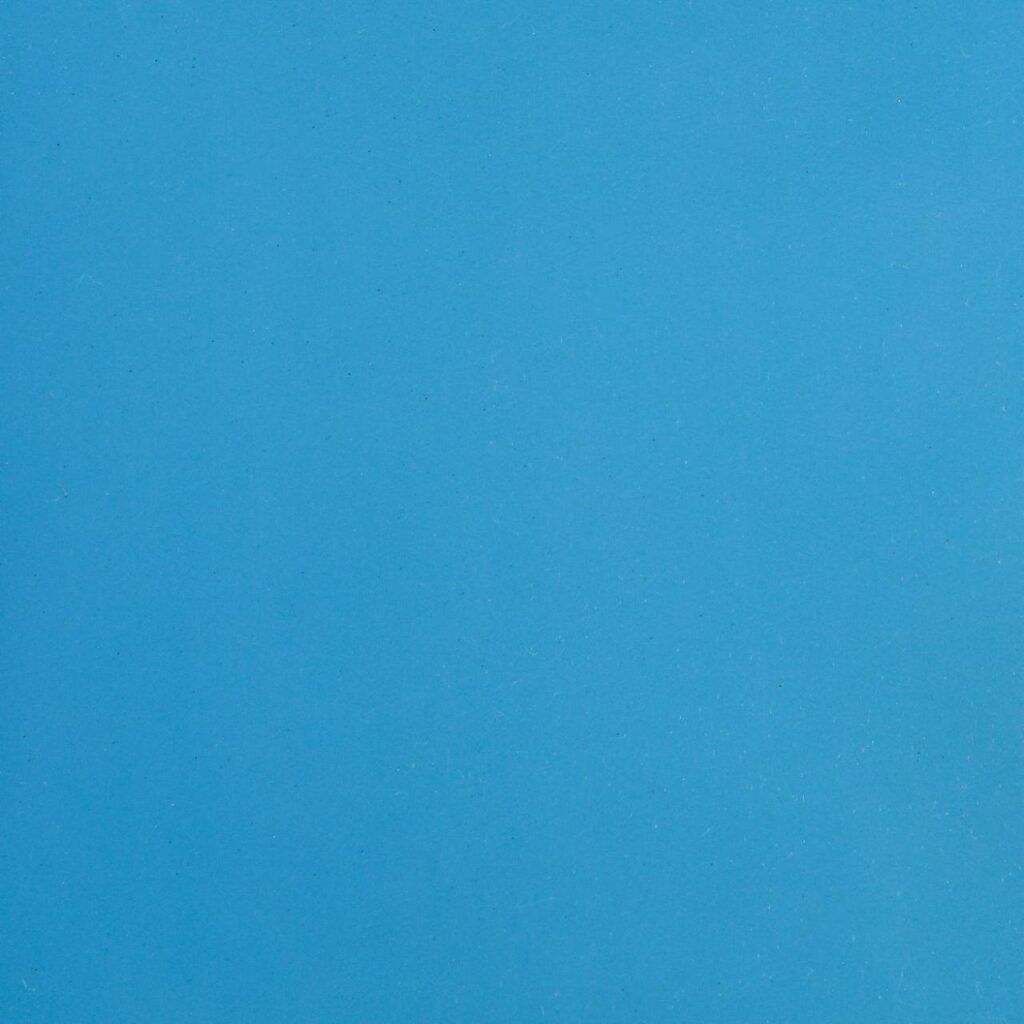

YHE-2105
YHE-2106
YHE-2107

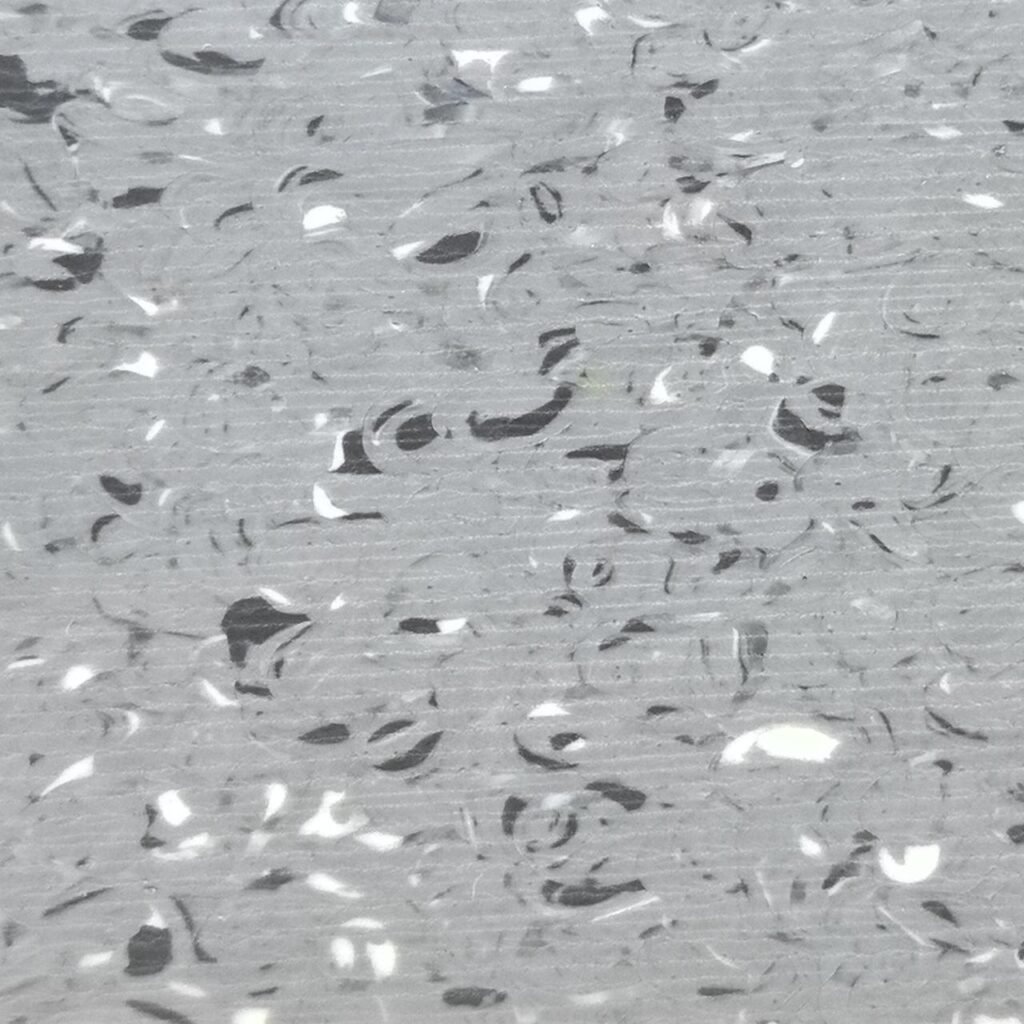

YHE-2108

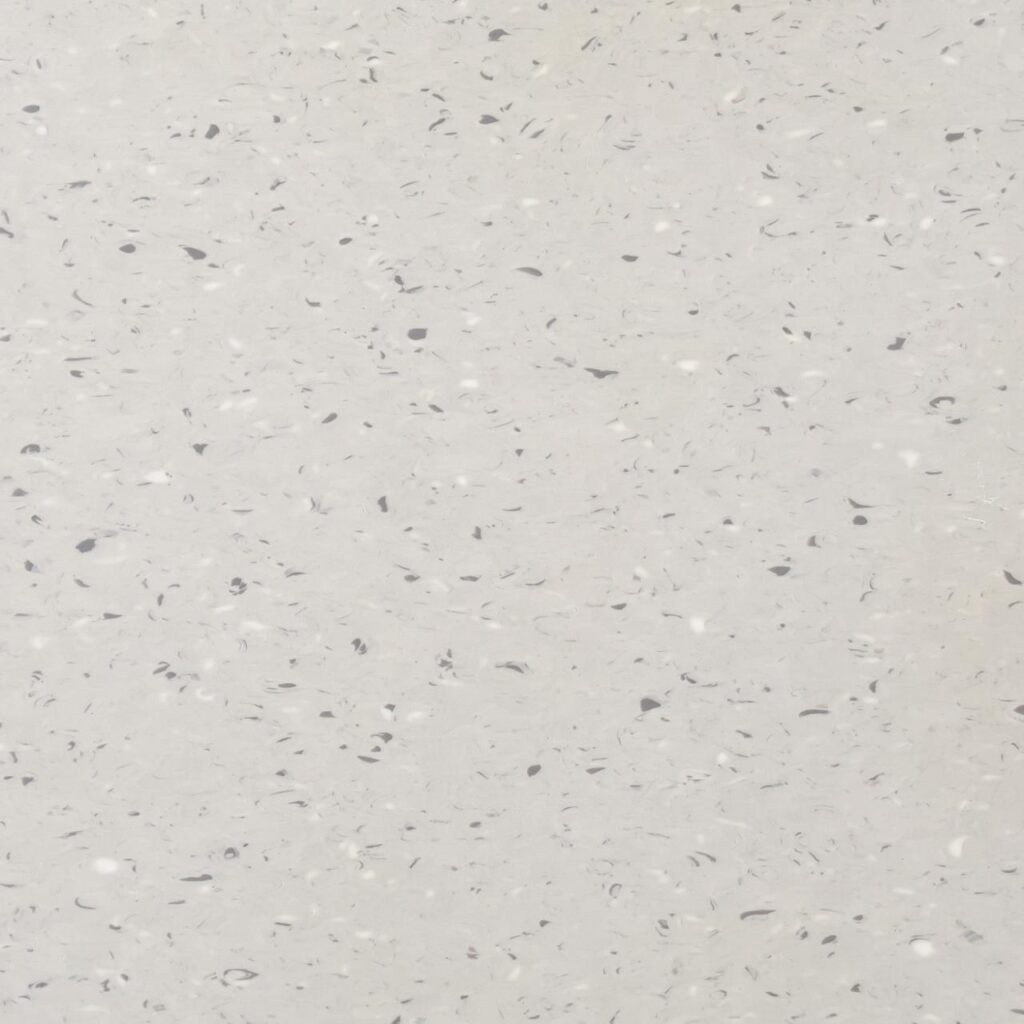

YHE-2109
YHE-2110

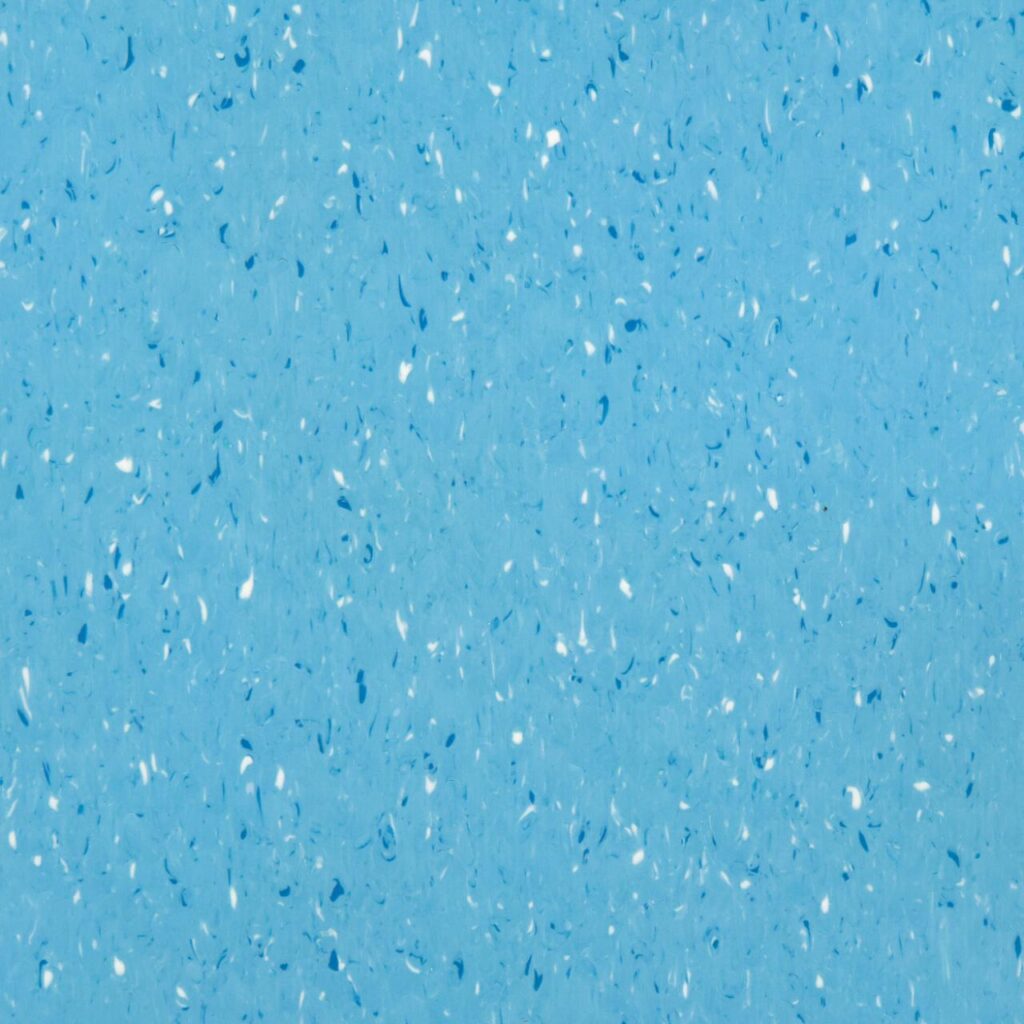

YHE-2111

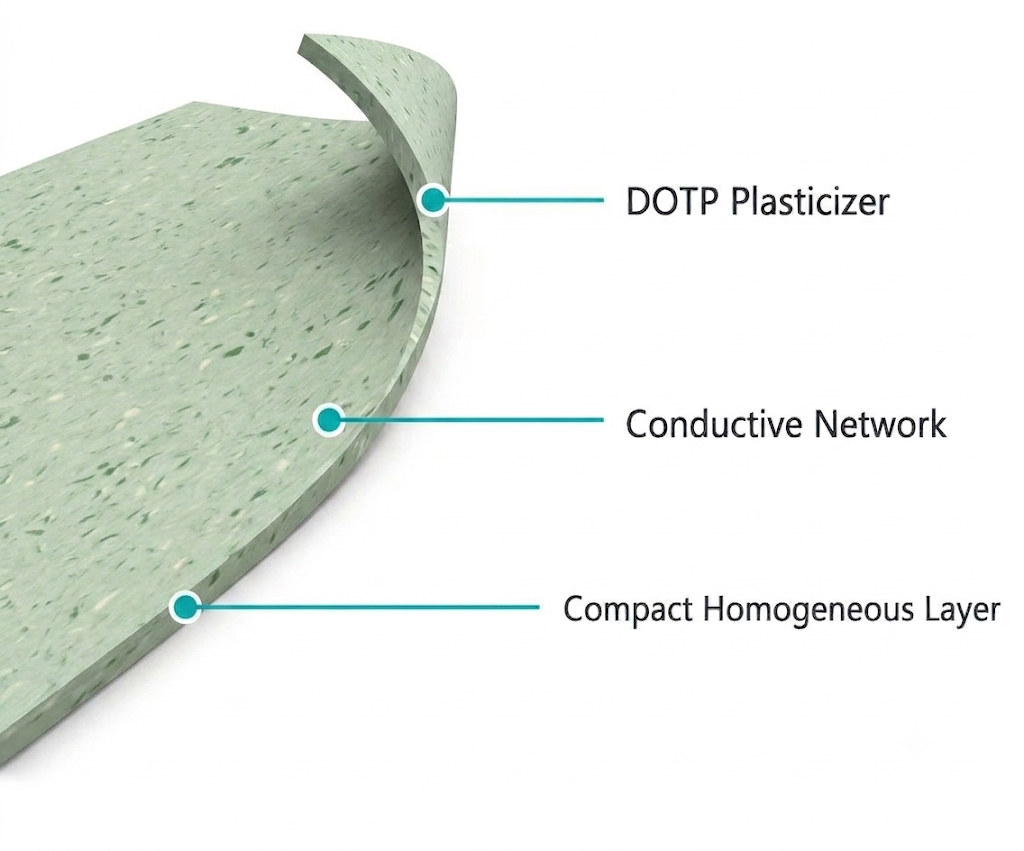

Whole heart structure
The homogeneous ESD vinyl floor embeds conductive particles through the entire slab. Its anti-static performance will never fade even after heavy abrasion, and scratches won’t expose a non-conductive base layer.
Super antibacterial function
Built-in antibacterial components restrain the reproduction of bacteria and microbes effectively, maintaining hygienic and sterile service conditions long-term.
Nanometer Carbon-Free Conductive Material
Adopting nano-sized carbon-free conductive fillers, this material delivers stable conductivity without carbon pollution, compatible with precision electronic and filtering applications.
Material is pure and wearable
Made of high-purity raw substances with dense internal texture, it withstands long-term friction, abrasion and frequent washing without performance attenuation.
Specifications
| ITEM | DETAILS |
| Product | Free of Carbon Fibres ESD Vinyl Sheet |
| Dimension | 1560mm/2000mmx15m |
| Thickness | 2.0mm, 2.5mm, 3.0mm |
| Composition of Material | Homogeneous, chip through |
| Weight | 3100g/sqm(2mm),3870g/sqm(2.5mm), 4650g/sqm(3mm) |
| Warranty | 10 Years |
Technical Data Sheet
| TEST ITEM | TEST STANDARD | TEST RESULTS | |

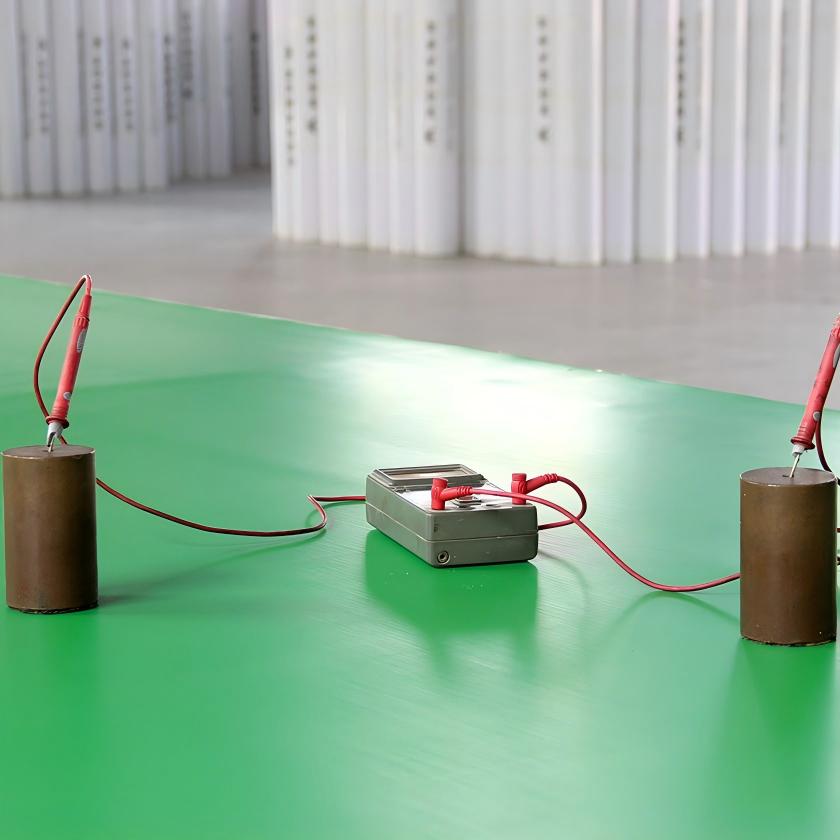

| Electrical Resistance(Ω) | SJ/T11236-2001 | 1.0×10⁵ – 1.0×10⁶ | 1.0×10⁶ -1.0×10⁹ |
| Dimensional Stability(%) | ISO 23999:2018 | 0.04 | |
| Anti-bacterial | ISO22106:2007 | ＞99.9% | |
| Static Decay(s) | GJB2605-1996 | ≤2 | |
| Wear Resistance | EN 660-2:1999 | Class T | |
| Fire Resistance | EN13501-1:2007 | Bfl-s1 | |
| Radiant Flux(W/cm²) | ASTM E648-2017 | ≥1.1 | |
| Slip Resistance Wet | EN13893 | ≥0.3 | |
| Residual Indentation(mm) | ISO 24343-1:2002 | 0.01 | |
| Color Fastness | ISO 105 B02 | ≥6 | |
| Chemical Products Resistance | EN ISO 26987:2012 | OK | |

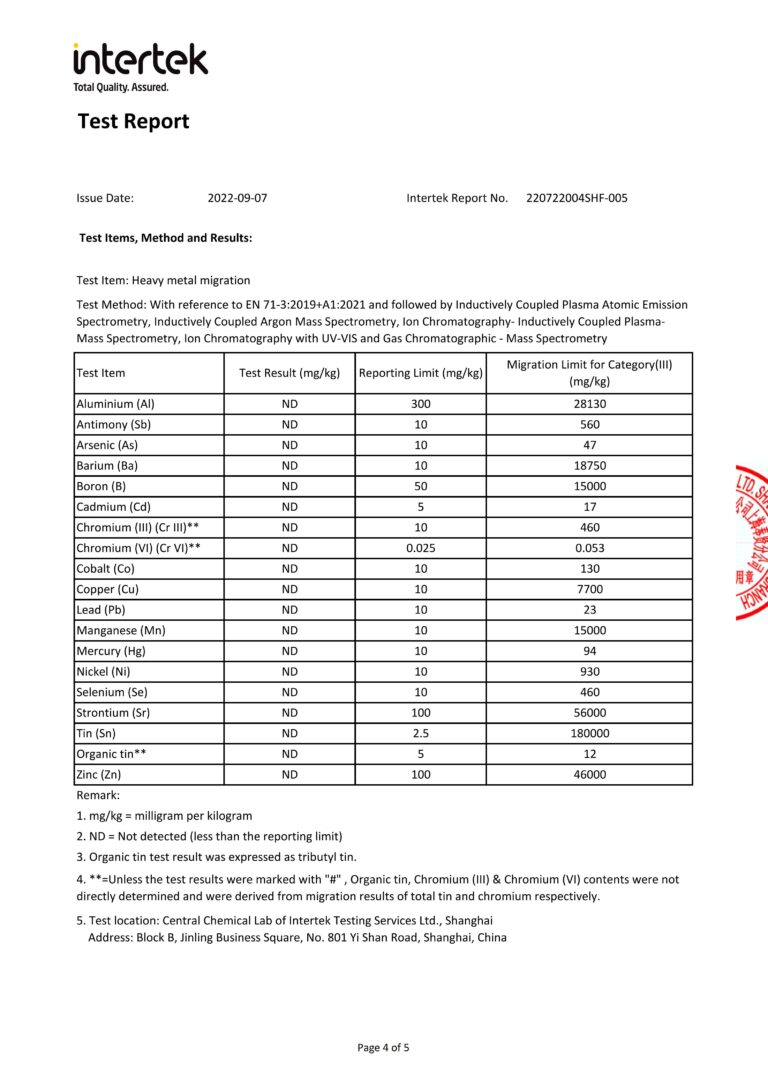

| Migration of Certain Elements | EN 71-3:2013 | OK | |
| RoHS Directive(%) | EN 62321 | 0.001 | |
| TVOC After 28 Days(μg/m³) | ISO 16000-3 | <10 | |

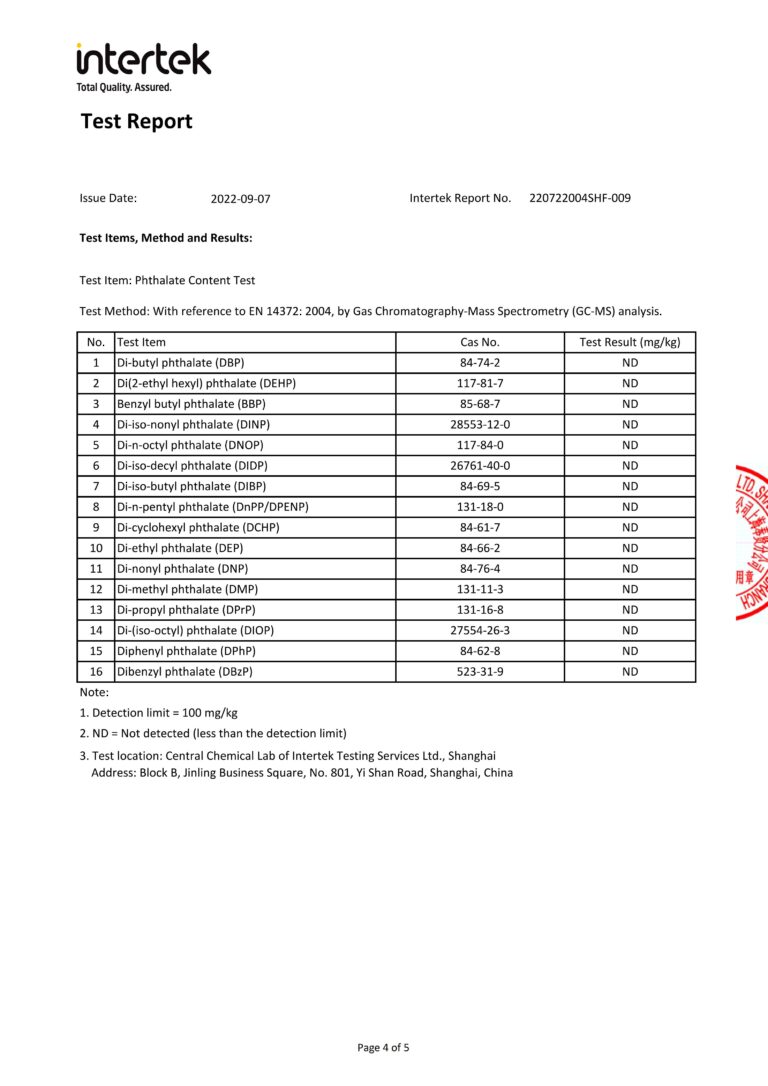

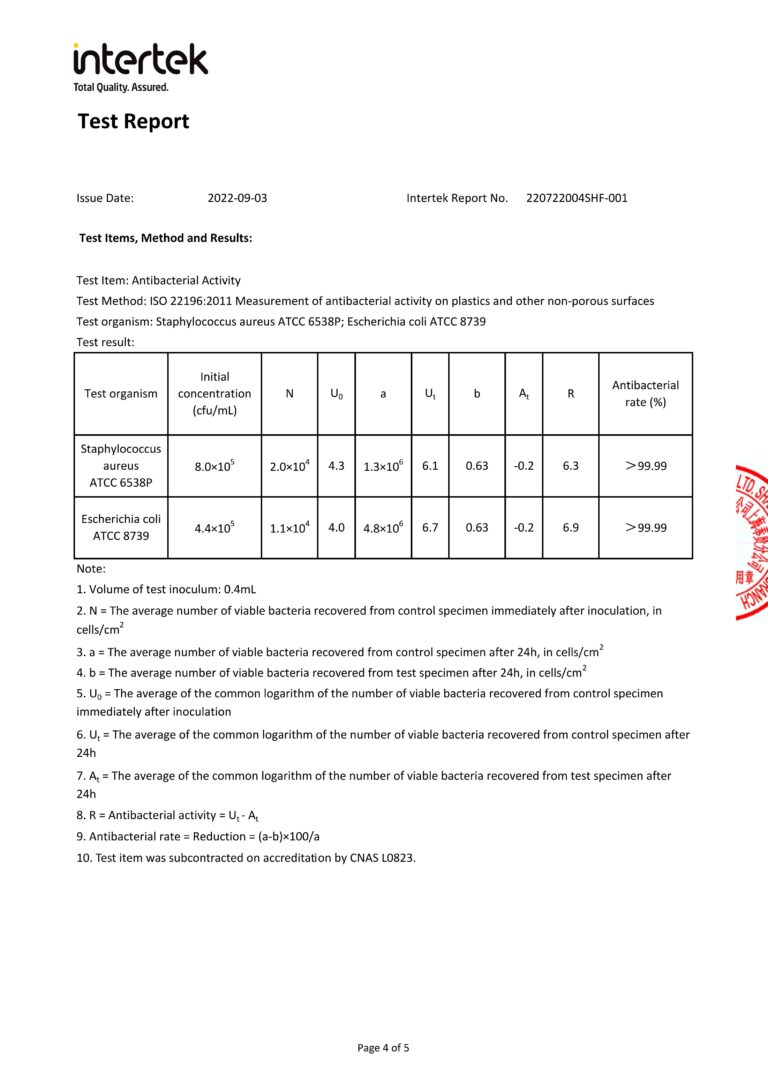

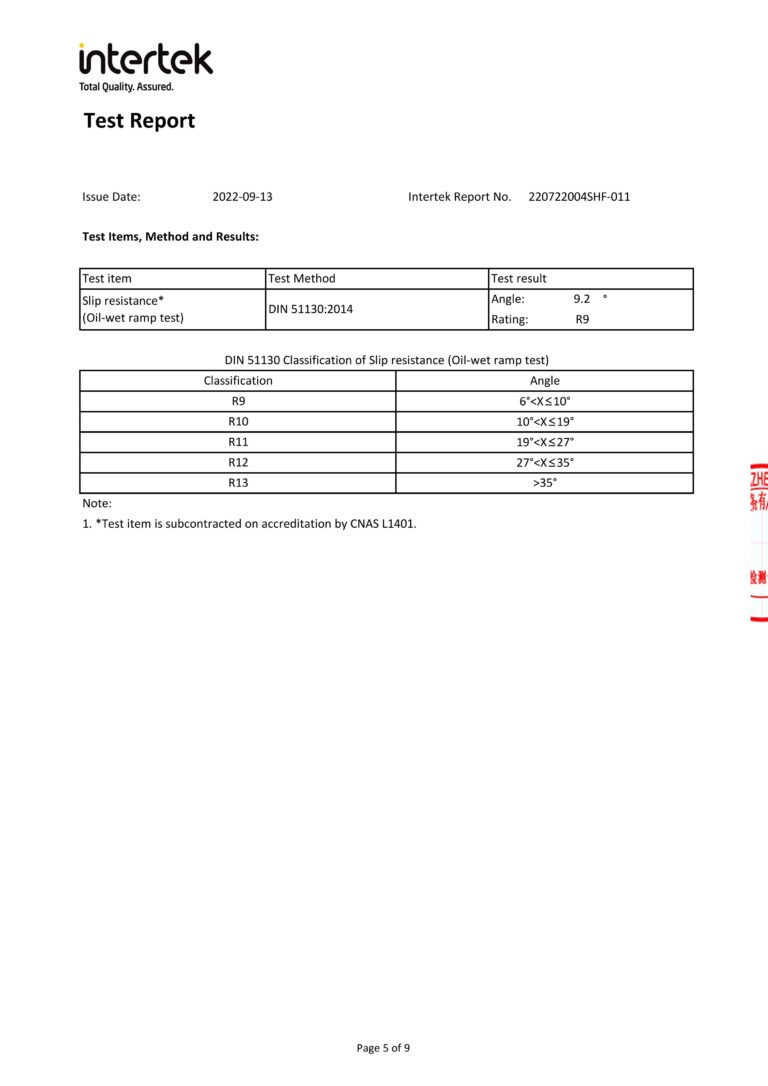

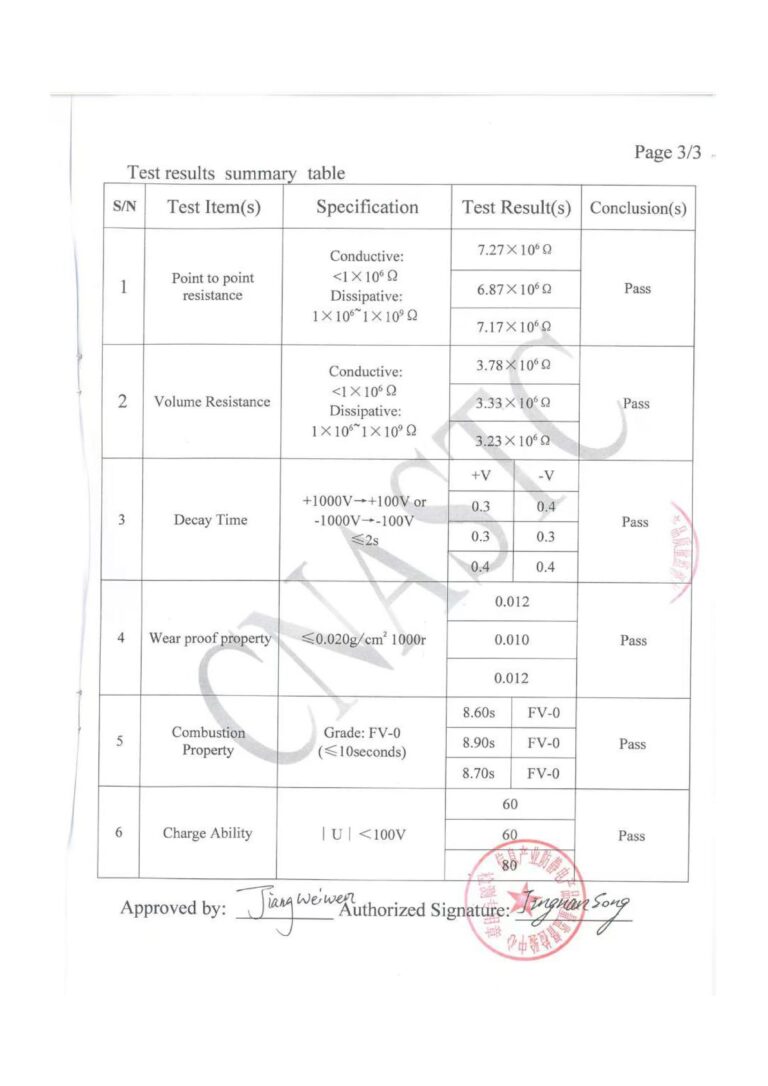

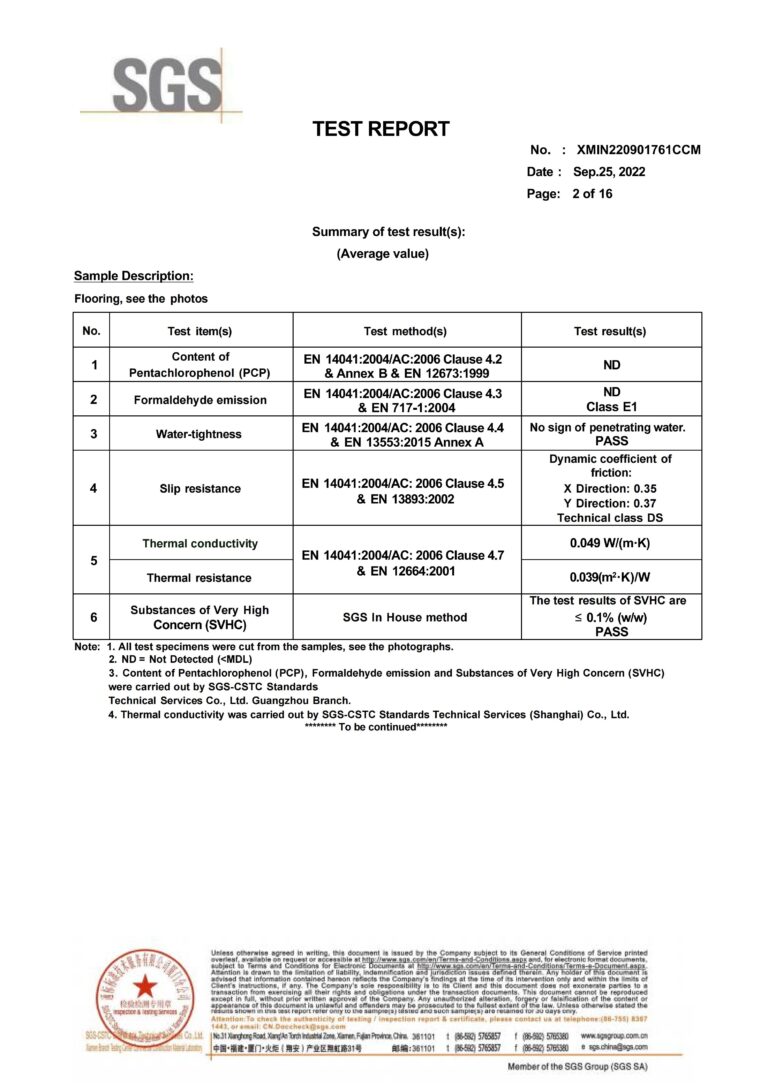

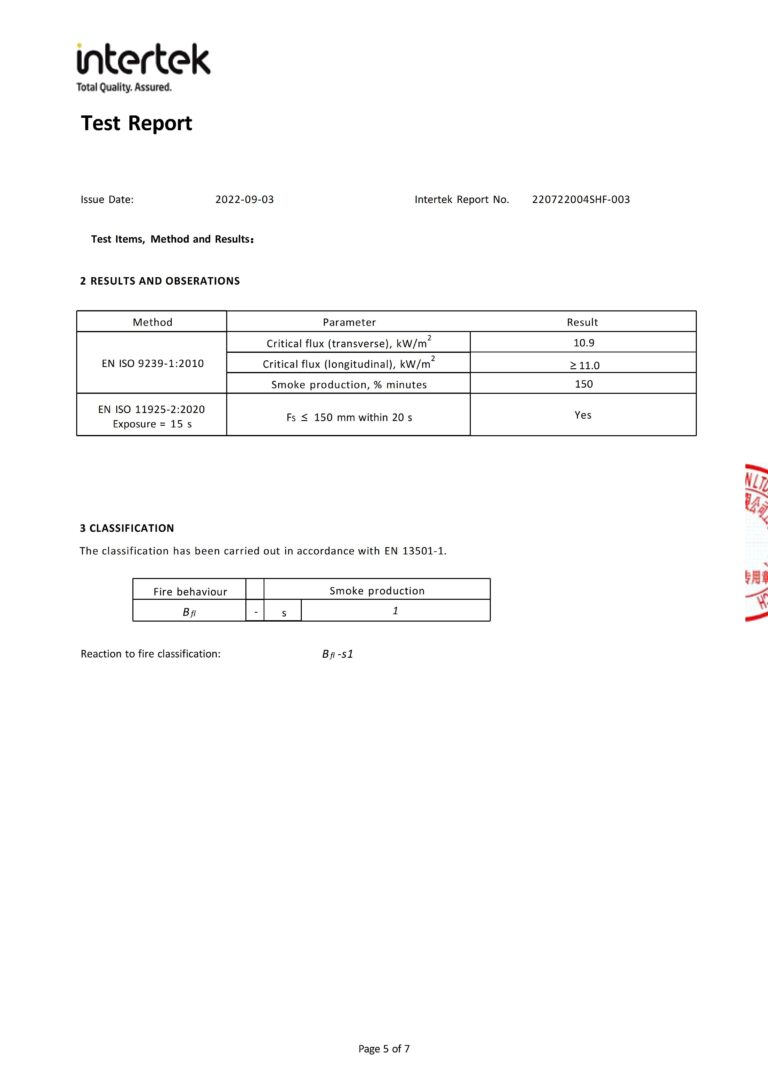

Certificates
FAQ
What is the difference between Carbon Fibres Loaded ESD Sheet and Carbon-Free ESD Sheet?
Carbon Fibres Loaded ESD Sheet contains conductive carbon fibres throughout the flooring, while Carbon-Free ESD Sheet achieves anti-static performance without visible carbon particles, offering a cleaner and more uniform appearance.
Why choose Carbon-Free ESD Sheet?
Carbon-Free ESD Sheet combines permanent ESD protection with a clean, uniform appearance. It minimizes dust contamination, reduces maintenance costs, offers excellent durability, and delivers stable electrical performance throughout its service life, making it ideal for high-standard clean and static-sensitive environments.
Does Free of Carbon Fibres ESD Sheet require conductive wax?
No. The flooring features a conductive UV coating that maintains its ESD performance while providing excellent stain and scratch resistance. Routine cleaning with a neutral cleaner is sufficient, eliminating the need for conductive wax.
How long does the anti-static performance last?
The anti-static properties are built into the homogeneous flooring structure rather than applied as a surface coating. With proper installation and maintenance, the ESD performance remains stable throughout the product’s service life.
How to maintain Free of Carbon Fibres ESD Sheet?
Free of Carbon Fibres ESD Sheet is easy to maintain thanks to its conductive antibacterial UV coating. The surface provides excellent stain resistance, scratch resistance, and antibacterial performance, helping prevent dirt accumulation and bacterial growth. Daily cleaning with a neutral detergent is sufficient to keep the floor clean and bright, without the need for regular conductive wax maintenance, reducing long-term maintenance costs.
